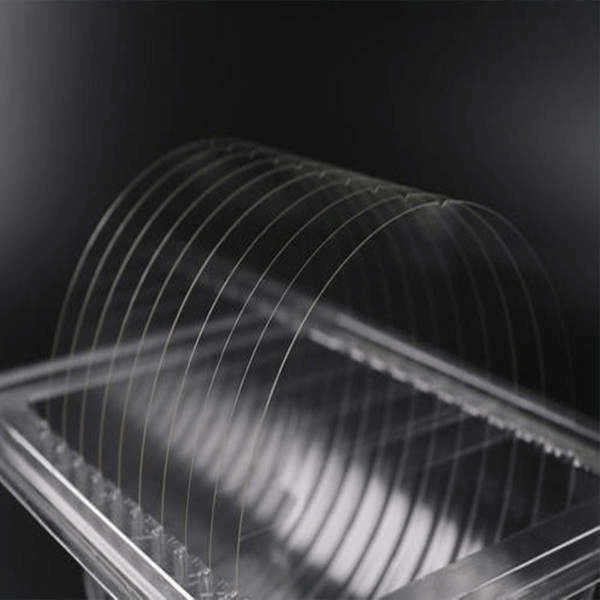

Optical Wafer Glass Precision Glass Processing -8 "Schott double side Grinding Wafer - for LED chips

The company has introduced glass laser cutting machines, ultrasonic instruments, engraving and grinding machines and other equipment. At the same time, technicians with many years of industry experience can provide customers with glass wafers with a thickness of ≧0.1mm and an external dimension of ≧Φ2". It is used in CMOS, CCD sensor, integrated circuit or micro-mechanical component packaging (MEMS), communication and data processing, optics, electronic products, home appliances, military industry, scientific research and other high-tech products.

typical application:

Micro optics
MEMS (pressure sensors, accelerometers…)
Wafer Level Packaging (Image Sensor Packaging…)
Bioengineering (microfluidics, DNA analysis…)
and many other customer specified applications


· Special optical glass material with excellent heat-resistant and light-transmitting properties, as well as good chemical properties
· Rich experience in glass production and processing, with standard surface accuracy and apparent quality
· Various thickness and size can be customized, with small thickness and size tolerance
· Complies with conventional machining requirements and industry standards (eg SEMI)
· Integrated production process in compliance with all requirements of ISO 9001:2000


Glass wafer plus technical parameters:

a)Material: Corning Eagle XG, BOROFLOAT, PYREX7740, Quartz Glass, B270, D263T, AF32, BK-7
b) Standard thickness: 0.1mm, 0.145mm, 0.2mm, 0.3mm, 0.5mm, 0.7mm, 1.0mm, 1.1mm, 1.5mm (thickness tolerance ±0.02mm)
c) Standard size: Φ2", Φ3", Φ4", Φ5", Φ6", Φ8", Φ12" (other sizes can be customized)

d) Appearance: 60/40; 40/20; 20/10
e) Surface roughness (Ra)<1.5nm

f) Parallelism <0.01mm

g) Each edge is blunt C0.05~0.2mm

h) Crack <0.2mm, no internal crack

i) The surface is clean and free of marks and stains, and it should be packed under a clean workbench and packed in a special box.

can be customzied
