Name: Optical Microscope Reticles Stage Micrometer precise and stable microscope eyepiece reticle
Brand: Optry
SKU: 00085
Rating: 4.1 (93 reviews)

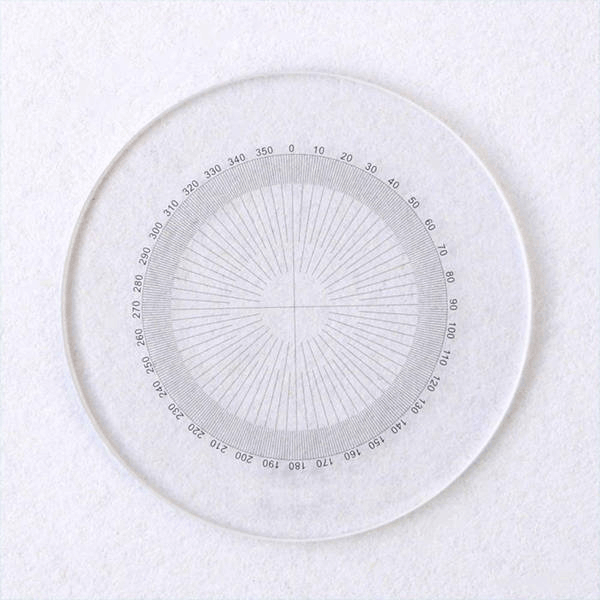

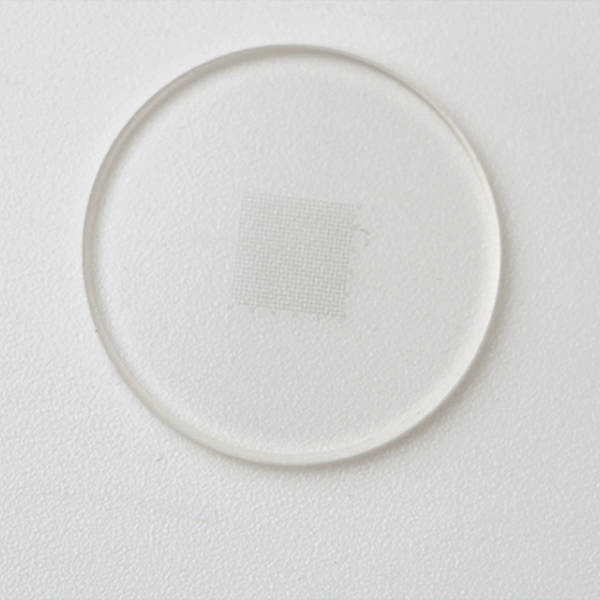

Optical reticle

Optical Microscope Reticles Stage Micrometer precise and stable microscope eyepiece reticle

Product Details:

(1) Product introduction:

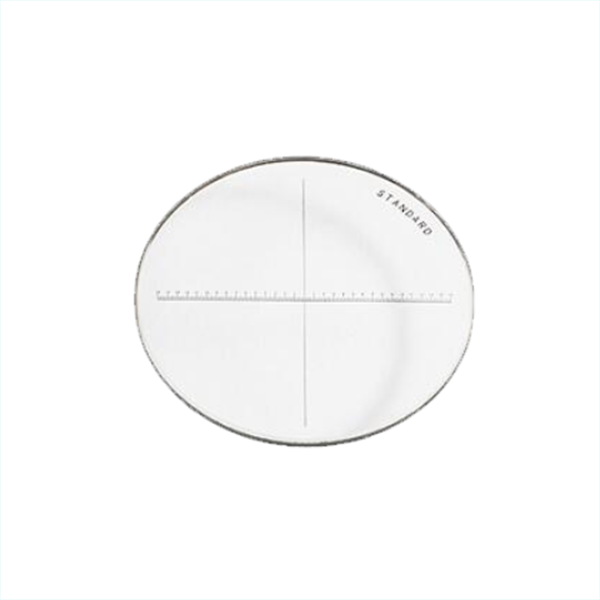

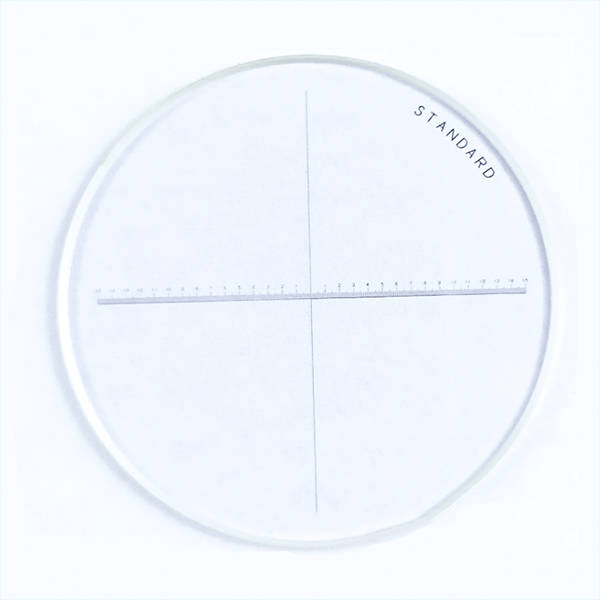

1. Product name: cross reticle

2. Product model: OPT05-25

3. Dimensions: φ25mm (customizable)

4. Precision (μm): 1

5. Material : Quartz/glass (customizable)

The reticle is generally installed on the focal plane of the right objective lens of the telescope. It is a thin glass with a very thin surface engraved with reticle dense bit lines. Since this thin glass theoretically also participates in imaging, it extends the focal length of the objective lens. , will have a more or less effect on the length of the right eyepiece

Uses: Optical inspection, measurement, surveying and mapping instruments such as microscopes, magnifiers, and theodolites. The resolution and optical transfer function can be checked.

The reticle is an optical element inserted into the eyepiece of an imaging system, and a crosshair or concentric ring can be superimposed on the object to be imaged. The pattern can be used as a position reference and can be aligned with the object to be imaged.

Processing customization instructions:

Please send us the style photos, detailed drawings or style product links you want to process, and attach as detailed material composition, quality requirements, quantity, size and other instructions as possible. According to the drawings and styles of your inquiry, we Will give you an accurate quotation.

Our company has passed ISO9001:2008 quality management system certification. The products sold in this shop are all genuine products, with high-quality materials, advanced technology, and product quality is guaranteed. You can buy with confidence.

If there`s anything i can do for you , feel free to contact me ,we are glad to help
